SEPI/ZETA用結合インダクタ SGQR1277CA

NEW AEC-Q200 2 in 1 磁路

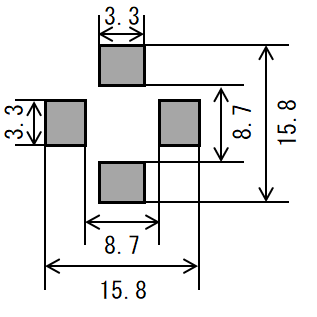

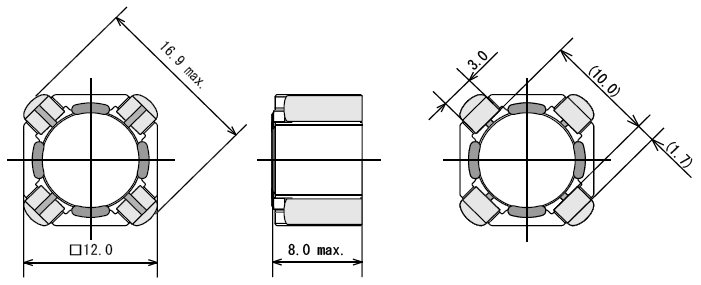

品番	インダクタンス(µH)	直流抵抗 (Ω) max.		直流重畳許容電流 (A)	温度上昇許容電流 (A)
品番	インダクタンス(µH)	④-③	①-②	直流重畳許容電流 (A)	One winding	Series connection
SGQR1277CA-2R2A	2.2 ± 35%	0.017	0.017	18.6	4.2	3.35
SGQR1277CA-3R0A	3 ± 35%	0.021	0.021	16.1	3.85	3.1
SGQR1277CA-3R9A	3.9 ± 35%	0.023	0.023	13.5	3.75	2.95
SGQR1277CA-5R1A	5.1 ± 35%	0.027	0.027	12.2	3.4	2.75
SGQR1277CA-6R8A	6.8 ± 35%	0.035	0.035	10.9	3.05	2.4
SGQR1277CA-8R2N	8.2 ± 30%	0.039	0.039	10.1	2.9	2.25
SGQR1277CA-100M	10 ± 20%	0.044	0.044	9.25	2.75	2.2
SGQR1277CA-120M	12 ± 20%	0.052	0.052	8.35	2.45	1.95
SGQR1277CA-150M	15 ± 20%	0.071	0.071	7.2	2.15	1.7
SGQR1277CA-180M	18 ± 20%	0.083	0.083	6.75	2	1.55
SGQR1277CA-220M	22 ± 20%	0.11	0.11	6.35	1.75	1.35
SGQR1277CA-270M	27 ± 20%	0.12	0.12	5.65	1.6	1.25
SGQR1277CA-330M	33 ± 20%	0.14	0.14	4.95	1.55	1.15
SGQR1277CA-390M	39 ± 20%	0.18	0.18	4.5	1.35	1.03
SGQR1277CA-470M	47 ± 20%	0.2	0.2	4.2	1.3	0.98
SGQR1277CA-560M	56 ± 20%	0.25	0.25	3.8	1.15	0.87
SGQR1277CA-680M	68 ± 20%	0.3	0.3	3.45	1.05	0.79
SGQR1277CA-820M	82 ± 20%	0.35	0.35	3.1	0.96	0.72
SGQR1277CA-101M	100 ± 20%	0.42	0.42	2.85	0.88	0.66
SGQR1277CA-121M	120 ± 20%	0.51	0.51	2.65	0.8	0.6
SGQR1277CA-151M	150 ± 20%	0.63	0.63	2.3	0.72	0.53
SGQR1277CA-181M	180 ± 20%	0.75	0.75	2.1	0.68	0.49
