Leaded Power Inductors 7608A
Not Recommended
Mag

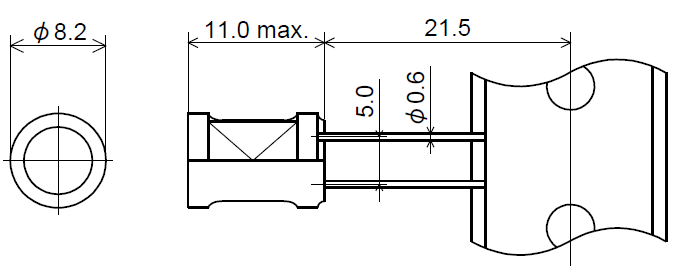

Features
- Magnetic unshielded type of power inductor
- Usable as power supply choke coil
- Come in a taping for automatic insertion
Applications
- AudioVisual Mini System, AV Amplifier, for Professionals, Recorder
- Computer & Peripheral Device Printer(MFP)
- Home Electronics Lights, LED Lights, Home Electronics
- Others Power Supply, FA, Medical, Energy
Electrical Characteristics
| Part Number | Inductance(µH) | DCR (Ω) | DC Saturation Allowable Current (A) | Temperature Rise Allowable Current (A) | |
|---|---|---|---|---|---|
| Max | Typical | ||||
| 7608A-100L | 10 ± 15% | 0.026 | 0.024 | 3.5 | 2.7 |
| 7608A-120K | 12 ± 10% | 0.03 | 0.028 | 3.1 | 2.5 |
| 7608A-150K | 15 ± 10% | 0.039 | 0.031 | 2.8 | 2.3 |
| 7608A-180K | 18 ± 10% | 0.041 | 0.037 | 2.4 | 2.2 |
| 7608A-220K | 22 ± 10% | 0.058 | 0.047 | 2.2 | 2 |
| 7608A-270K | 27 ± 10% | 0.064 | 0.055 | 2.1 | 1.9 |
| 7608A-330K | 33 ± 10% | 0.084 | 0.067 | 1.9 | 1.7 |
| 7608A-390K | 39 ± 10% | 0.092 | 0.077 | 1.7 | 1.6 |
| 7608A-470K | 47 ± 10% | 0.11 | 0.084 | 1.6 | 1.4 |
| 7608A-560K | 56 ± 10% | 0.13 | 0.102 | 1.4 | 1.3 |
| 7608A-680K | 68 ± 10% | 0.18 | 0.135 | 1.3 | 1.1 |
| 7608A-820K | 82 ± 10% | 0.2 | 0.171 | 1.2 | 1 |
| 7608A-101K | 100 ± 10% | 0.26 | 0.197 | 1.1 | 0.95 |
| 7608A-121K | 120 ± 10% | 0.29 | 0.239 | 1 | 0.9 |
| 7608A-151K | 150 ± 10% | 0.37 | 0.283 | 0.9 | 0.77 |
| 7608A-181K | 180 ± 10% | 0.42 | 0.385 | 0.8 | 0.72 |
| 7608A-221K | 220 ± 10% | 0.58 | 0.43 | 0.71 | 0.61 |
| 7608A-271K | 270 ± 10% | 0.67 | 0.559 | 0.66 | 0.57 |
| 7608A-331K | 330 ± 10% | 0.85 | 0.693 | 0.58 | 0.51 |
| 7608A-391K | 390 ± 10% | 1.1 | 0.762 | 0.54 | 0.48 |
| 7608A-471K | 470 ± 10% | 1.2 | 1.04 | 0.5 | 0.43 |
| 7608A-561K | 560 ± 10% | 1.6 | 1.16 | 0.45 | 0.39 |
| 7608A-681K | 680 ± 10% | 1.8 | 1.3 | 0.41 | 0.35 |
| 7608A-821K | 820 ± 10% | 2 | 1.48 | 0.37 | 0.33 |
| 7608A-102K | 1000 ± 10% | 2.6 | 1.95 | 0.34 | 0.3 |
| 7608A-122K | 1200 ± 10% | 2.8 | 2.185 | 0.33 | 0.26 |
| 7608A-152K | 1500 ± 10% | 3.8 | 3.07 | 0.31 | 0.25 |
| 7608A-182K | 1800 ± 10% | 4.4 | 3.395 | 0.3 | 0.2 |
| 7608A-222K | 2200 ± 10% | 5.1 | 3.886 | 0.29 | 0.16 |
| 7608A-272K | 2700 ± 10% | 6.3 | 4.854 | 0.28 | 0.14 |
| 7608A-332K | 3300 ± 10% | 7.6 | 5.826 | 0.25 | 0.13 |
- Inductance Measuring Condition:1kHz,1V
- DC saturation allowable current:The current value which inductance decrease within 10% from the initial value
- Temperature rise allowable current:The rise in temperature of core surface is within 35℃
Current characteristic graph

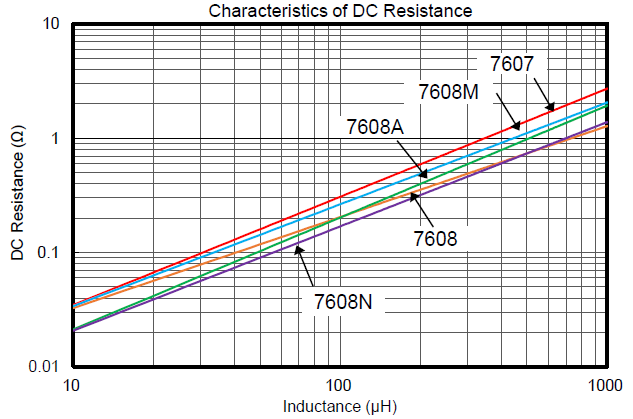

Characteristics of DC Resistance

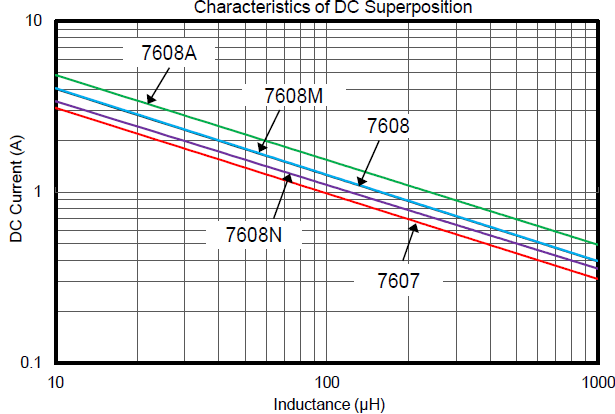

Characteristics of DC Superposition
