Pulse Drive transformer for Automotive Equipment VERS1160B
NEW AEC-Q200
Mag
Features
- For signal transmission
- High Withstand Voltage ～AC 2500Vrms
- High Coupling and Low leakage flux
- AEC-Q200 compliant
- Operating temperature：-40℃～+150℃(The self-heating is included)
Applications
- Automotive ECU
- Others Power Supply, Energy
Specification Sheet

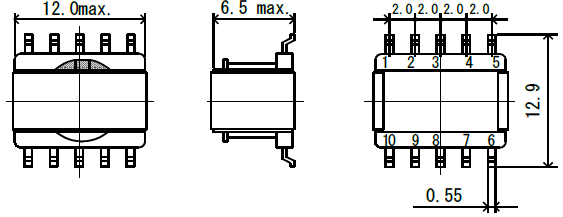

| Type | Appearance | Core Shape | Magnetic Structure | Number of Terminals (pcs) |
Voltage Rating (V) Max. |
Output Power (W) |
Mounting Area (mm²) |
Height (mm)Max. |
Frequency | Topology |
|---|---|---|---|---|---|---|---|---|---|---|
| VERS1160B |
 |
ER |
 |
8 | AC2500 | 2.3 | 158 | 6.5 | 2000 | フォワード/プッシュプル/パルス通信 |
カテゴリー: パルストランス
