DC/DC Converter Transformer for Automotive Equipment VER1160B
AEC-Q200
Mag
Features
- For battery charger for HEV / EV
- For battery management system etc.
- VER1160B：High heat resistance・High withstand voltage (～AC 2500Vrms)
- AEC-Q200 compliant
- Operating temperature：-40℃～+150℃(The self-heating is included)
Applications
Specification Sheet

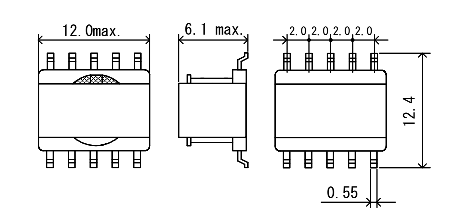

| Type | Appearance | Core Shape | Magnetic Structure | Number of Terminals (pcs) |
Voltage Rating (V) Max. |
Output Power (W) |
Mounting Area (mm²) |
Height (mm)Max. |
Frequency | Topology |
|---|---|---|---|---|---|---|---|---|---|---|
| VER1160B |
 |
ER |
 |
8 | AC2500 | 2.3 | 158 | 6.1 | 1000 | フライバック |
カテゴリー: 標準タイプ
