Common Mode Chokes    TDG5629C

NEW AEC-Q200 Mag
TDG5629C

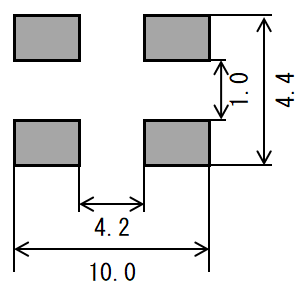

Recommended Land Pattern

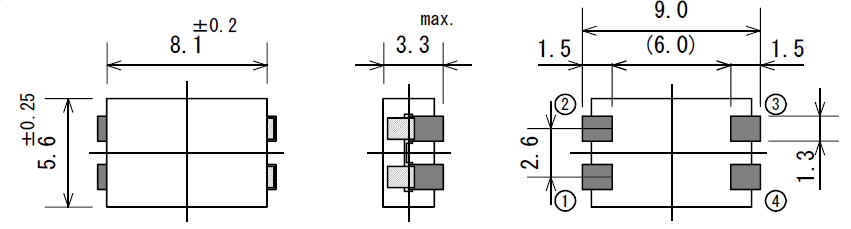

Dimensions
email Contact for this product

Product Info.

General Info.

Features

  • Common mode inductor for large current
  • High impedance at 100M to 3GHz
  • AEC-Q200 available for automotive.
  • Operating tenperature：-40℃～+150℃(The selfheating is included)

Applications

  • Automotive
    • Car Audio, LED Headlights

Current characteristic graph

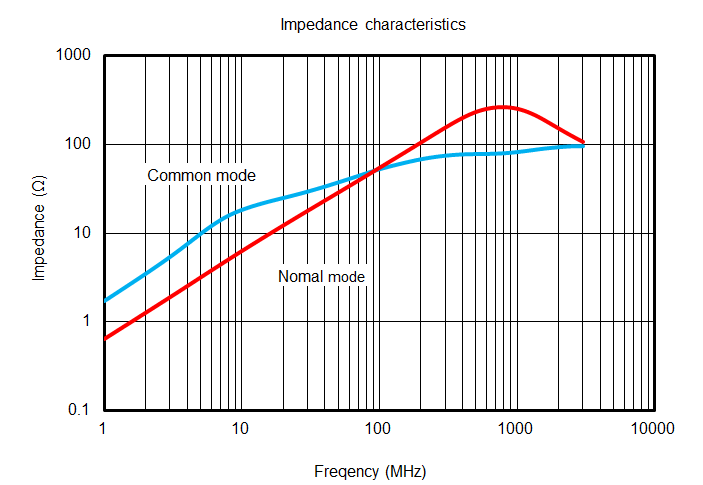

Impedance vs. Frequency

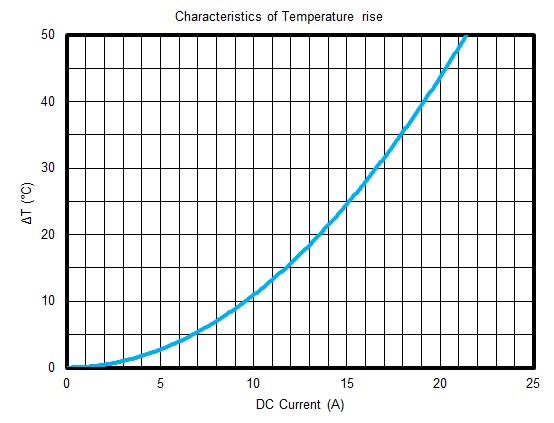

Characteristics of Temperature Rise
