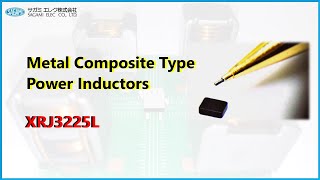

Metal Composite Power Inductors XRJ3225L
NEW AEC-Q200
Product Info.
General Info.
Features
- Realization of small size and high current specifications by metallic magnetic material.
- Low DCR, high saturation current
- Decreased acoustic noise by there are no air gaps.
- Low inductance variance in temperature environments.
- Operating temperature：-40℃～+125℃(The self-heating is included)
Applications
- AudioVisual TV and Monitor, Mini System, AV Amplifier, for Professionals, Camera, Recorder
- Automotive Car Audio, Car Navigation, ECU, LED Headlights
- Computer & Peripheral Device Computer, Printer(MFP), Industorial Machines
- Home Electronics LED Lights
- Others Power Supply, FA, Medical, Energy
Electrical Characteristics
| Part Number | Inductance(µH) | DCR (mΩ) | DC Saturation Allowable Current (A) | Temperature Rise Allowable Current (A) | |
|---|---|---|---|---|---|
| Max | Typical | ||||
| XRJ3225L-R10M | 0.1 ± 20% | 8 | 7 | 12 | 7 |
| XRJ3225L-R15M | 0.15 ± 20% | 12 | 10 | 11.6 | 6.8 |
| XRJ3225L-R22M | 0.22 ± 20% | 15 | 12.5 | 10 | 6 |
| XRJ3225L-R33M | 0.33 ± 20% | 16 | 13 | 9.5 | 5.8 |
| XRJ3225L-R47M | 0.47 ± 20% | 22 | 18 | 8.2 | 5.1 |
| XRJ3225L-R68M | 0.68 ± 20% | 26 | 22 | 6.1 | 4.4 |
| XRJ3225L-1R0M | 1 ± 20% | 32 | 26 | 4.8 | 3.8 |
| XRJ3225L-1R5M | 1.5 ± 20% | 48 | 39 | 3.9 | 3.1 |
| XRJ3225L-2R2M | 2.2 ± 20% | 68 | 55 | 3.4 | 2.6 |
| XRJ3225L-3R3M | 3.3 ± 20% | 108 | 86 | 2.6 | 2.3 |
| XRJ3225L-4R7M | 4.7 ± 20% | 150 | 127 | 2.3 | 2 |
| XRJ3225L-6R8M | 6.8 ± 20% | 220 | 170 | 2 | 1.3 |
| XRJ3225L-100M | 10 ± 20% | 315 | 280 | 1.7 | 1.1 |
- Inductance Measuring Condition:100kHz,1V
- DC saturation allowable current:The current value which inductance decrease 30% from the initial value
- Temperature rise allowable current:The rise in temperature of core surface is 40℃
