Metal Composite Power Inductors XRK0730B
NEW AEC-Q200
Product Info.
Tech Info.
General Info.
Features
- Realization of small size and high current specifications by metallic magnetic material.
- Decreased acoustic noise by there are no air gaps.
- Low inductance variance in temperature environments.
- Operating temperature：-40℃～+150℃(The self-heating is included)
- AEC-Q200 compliant
Applications
- AudioVisual TV and Monitor, Mini System, AV Amplifier, for Professionals, Camera, Recorder
- Automotive Car Audio, Car Navigation, ECU, LED Headlights
- Computer & Peripheral Device Computer, Printer(MFP), Industorial Machines
- Home Electronics LED Lights
- Others Power Supply, FA, Medical, Energy

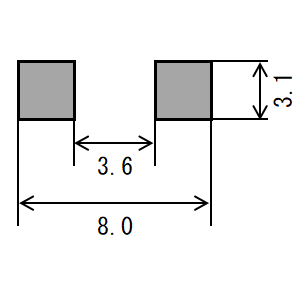

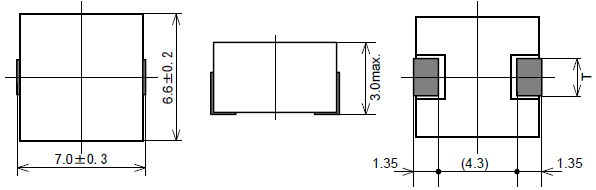

Electrical Characteristics
| Part Number | Inductance(µH) | DCR (mΩ) | DC Saturation Allowable Current (A) | Temperature Rise Allowable Current (A) | |
|---|---|---|---|---|---|
| Max | Typical | ||||
| XRK0730B-R15M | 0.15 ± 20% | 1.3 | 1 | 30 | 24 |
| XRK0730B-R22M | 0.22 ± 20% | 2.3 | 1.8 | 32 | 18 |
| XRK0730B-R33M | 0.33 ± 20% | 3.5 | 2.9 | 19 | 15 |
| XRK0730B-R47M | 0.47 ± 20% | 4.1 | 3.7 | 17 | 13 |
| XRK0730B-R56M | 0.56 ± 20% | 4.5 | 3.8 | 12 | 13 |
| XRK0730B-R68M | 0.68 ± 20% | 5.5 | 4.8 | 13 | 12 |
| XRK0730B-R82M | 0.82 ± 20% | 6.6 | 5.7 | 14 | 10 |
| XRK0730B-1R0M | 1 ± 20% | 7.8 | 6.5 | 9 | 10 |
| XRK0730B-1R2M | 1.2 ± 20% | 9.9 | 8.6 | 12 | 9 |
| XRK0730B-1R5M | 1.5 ± 20% | 11.5 | 9.5 | 10 | 8.5 |
| XRK0730B-2R2M | 2.2 ± 20% | 15.5 | 12.5 | 8.5 | 7 |
| XRK0730B-3R3M | 3.3 ± 20% | 28.5 | 24.5 | 7.5 | 5 |
| XRK0730B-4R7M | 4.7 ± 20% | 46.5 | 40.3 | 6.8 | 4 |
| XRK0730B-6R8M | 6.8 ± 20% | 65 | 54 | 5.6 | 3.6 |
| XRK0730B-8R2M | 8.2 ± 20% | 64 | 53 | 4.8 | 3.5 |
| XRK0730B-100M | 10 ± 20% | 75 | 65 | 4.4 | 3.3 |
| XRK0730B-150M | 15 ± 20% | 110 | 96 | 3.6 | 2.6 |
| XRK0730B-220M | 22 ± 20% | 149 | 135 | 2.9 | 2 |
| XRK0730B-330M | 33 ± 20% | 242 | 200 | 2.3 | 1.6 |
- Inductance Measuring Condition:100kHz,1V
- DC saturation allowable current:The current value which inductance decrease 20% from the initial value
- Temperature rise allowable current:The rise in temperature of core surface is 30℃
