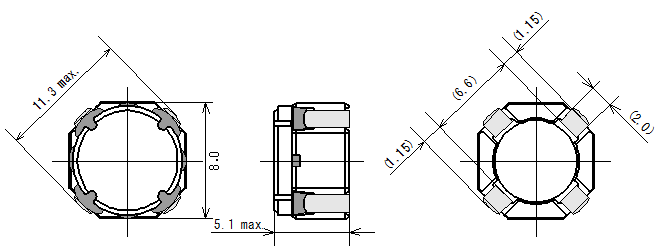

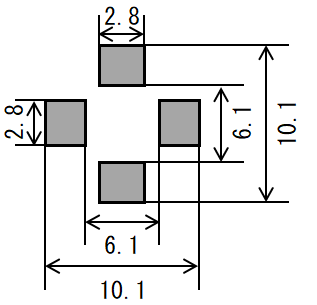

Common Mode Chokes TQR8048C
AEC-Q200
Mag
Product Info.
General Info.
Features
- High common mode impedance is realized in a small package.
- Suitable for common noise between 30MHz to 1GHz.
- Magnetically shielded structure, high current.
- Four terminals structure for resisting to mechanical shock and vibration.
- AEC-Q200 compliant
- Operating tenperature：-40℃～+125℃(The selfheating is included)
Applications
- Automotive Car Audio, LED Headlights
- Others Power Supply, Medical, Energy
Electrical Characteristics
| Part Number | DCR (mΩ) | Insertion Loss (dB) | Temperature Rise Allowable Current (A) | ||
|---|---|---|---|---|---|
| ①-② | ④-③ | @1MHz | @100MHz | ||
| TQR8048C-N0002RN2-R | 3.1 | 3.7 | 3 | 5 | 5.5 |
| TQR8048C-N0003RN2-R | 4.3 | 5 | 3 | 12 | 4.8 |
| TQR8048C-N0004RN2-R | 5.8 | 6.3 | 3 | 18 | 4.1 |
- Temperature rise allowable current:The rise in temperature of core surface is within 40℃(④-① short)
Current characteristic graph

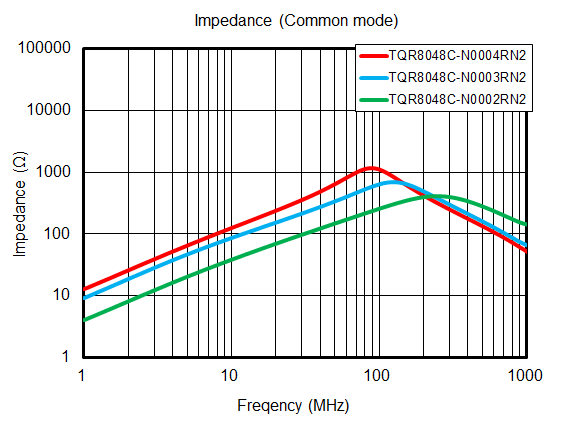

Impedance vs. Frequency

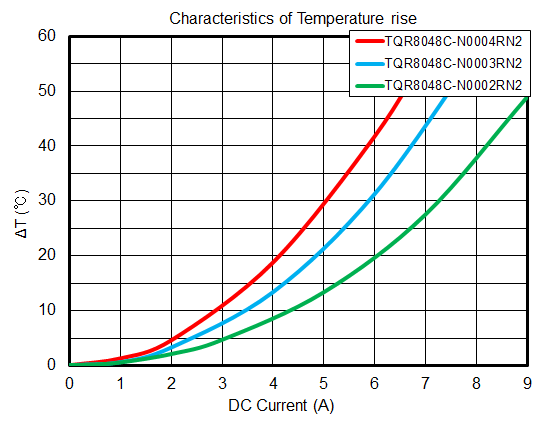

Characteristics of Temperature Rise
