Common Mode Chokes TJF4520G
NEW AEC-Q200
Mag

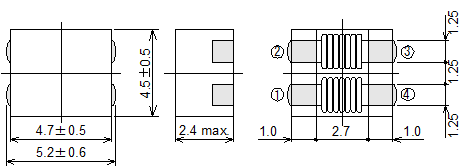

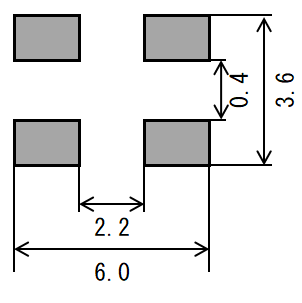

Features
- For common mode noise countermeasures
- Small size, high current, high impedance
- Effective over a wide frequency range from 1M to 1GHz
- Effective against conductive and radiated noise
- AEC-Q200 compliant
- Operating temperature：-40℃～+125℃(The self-heating is included)
Applications
- Automotive Car Audio, LED Headlights
Electrical Characteristics
| Part Number |
Common Mode Impedance (Ω)@100MHz |
DCR(1Line) (mΩ) max. |
Temperature Rise Allowable Current (A) |
|
|---|---|---|---|---|
| Typical | Min | |||
| TJF4520G-231 | 230 | 180 | 39 | 3 |
| TJF4520G-701 | 700 | 500 | 59 | 2.2 |
- Temperature rise allowable current:The rise in temperature of core surface is within 40℃
Characteristic graph

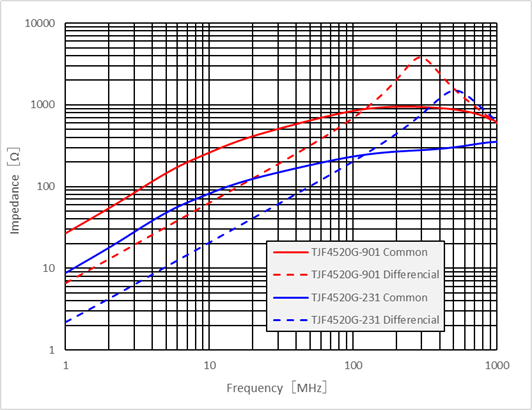

Impedance vs. Frequency
