Normal Mode Chokes PRCG4036C
NEW AEC-Q200 3 in 1
Mag
Product Info.
Tech Info.
General Info.
Features
- Three independent ferrite beads in one package structure
- High impedance at 100M to 3GHZ / High Current
- Small mounting area
- AEC-Q200 compliant
- Operating temperature：-40℃～+150℃(The self-heating is included)
Applications
- Automotive ECU
- Others Power Supply, FA
Electrical Characteristics
| Part Number | Impedance(Ω) min. | DCR (mΩ) | Temperature Rise Allowable Current (A) | |
|---|---|---|---|---|
| Max | Typical | |||
| PRCG4036C-Single | 33 | 0.93 | 0.85 | 9.1 |
- Impedance Measuring Condition:100MHz,0.1V
- Temperature rise allowable current:The rise in temperature of core surface is 40℃
Current characteristic graph

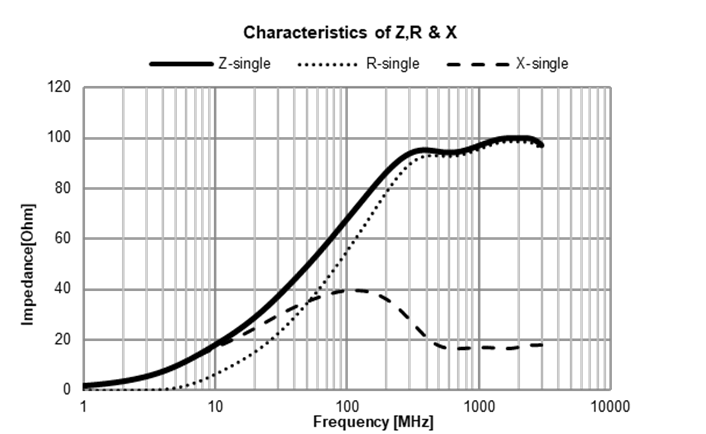

Impedance vs. Frequency

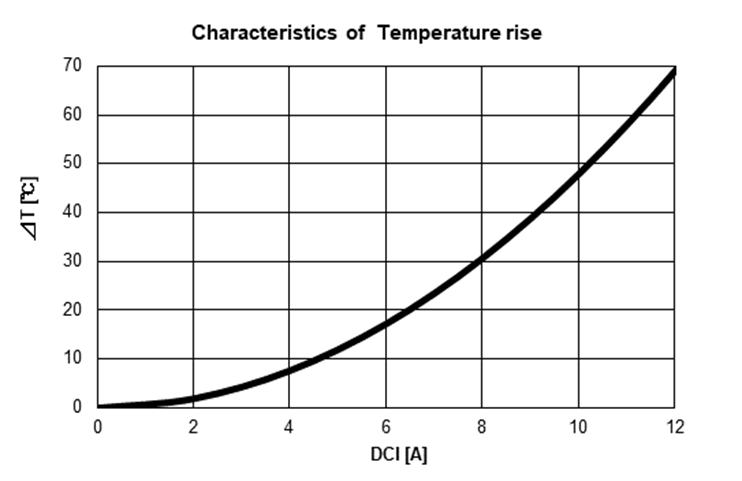

Characteristics of Temperature Rise
