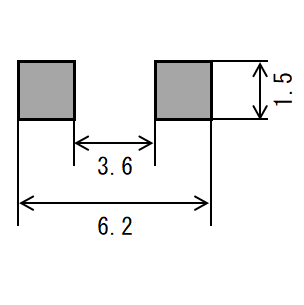

High Reliability Inductors    HER5027C

Features

  • High reliability available for automotive application.
  • High current
  • SMD magnetic shielded type of power inductor.
  • Suitable for power supply choke coil.
  • AEC-Q200 compliant
  • Operating temperature:-40℃~+150℃(The self-heating is included)

Applications

  • Automotive
  • Car Audio, Car Navigation, ECU, LED Headlights
  • Others
  • Power Supply, FA

Electrical Characteristics

Part Number Inductance(µH) DCR(Ω) ±30% DC Saturation Allowable Current (A) Temperature Rise Allowable Current (A)
HER5027C-1R0N 1 ± 30% 0.009 5.5 5.3
HER5027C-1R5N 1.5 ± 30% 0.012 4.5 4.75
HER5027C-2R0N 2 ± 30% 0.016 3.85 3.65
HER5027C-3R0N 3 ± 30% 0.021 3.35 3.4
HER5027C-3R6N 3.6 ± 30% 0.029 2.85 2.82
HER5027C-4R3N 4.3 ± 30% 0.038 2.7 2.45
HER5027C-5R6N 5.6 ± 30% 0.045 2.45 2.25
HER5027C-6R2N 6.2 ± 30% 0.063 2.15 1.9
HER5027C-7R5N 7.5 ± 30% 0.075 2 1.7
HER5027C-100M 10 ± 20% 0.091 1.7 1.55
HER5027C-120M 12 ± 20% 0.098 1.6 1.45
HER5027C-150M 15 ± 20% 0.12 1.4 1.3
HER5027C-180M 18 ± 20% 0.13 1.3 1.25
HER5027C-220M 22 ± 20% 0.15 1.15 1.15
HER5027C-270M 27 ± 20% 0.19 1.05 1
HER5027C-330M 33 ± 20% 0.23 1 0.95
HER5027C-390M 39 ± 20% 0.3 0.9 0.8
HER5027C-470M 47 ± 20% 0.39 0.8 0.7
HER5027C-560M 56 ± 20% 0.47 0.7 0.63
HER5027C-680M 68 ± 20% 0.59 0.65 0.56
HER5027C-820M 82 ± 20% 0.67 0.6 0.52
HER5027C-101M 100 ± 20% 0.75 0.55 0.49
HER5027C-121M 120 ± 20% 0.84 0.45 0.46
HER5027C-151M 150 ± 20% 1.12 0.4 0.39
HER5027C-181M 180 ± 20% 1.26 0.35 0.37
  • Inductance Measuring Condition:100kHz,1V(<10μH)、1kHz,1V(≧10μH)
  • DC saturation allowable current:The current value which inductance decrease within 30% from the initial value
  • Temperature rise allowable current:The rise in temperature of core surface is within 40℃

Current characteristic graph

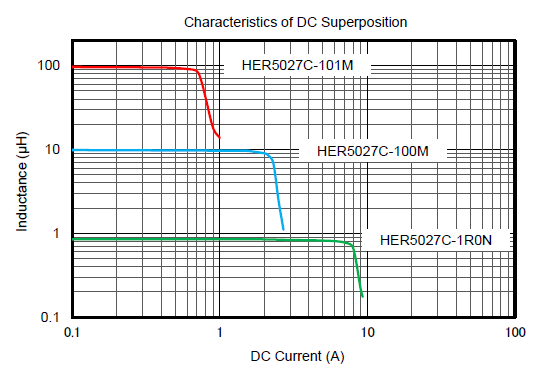

Characteristics of DC Superposition

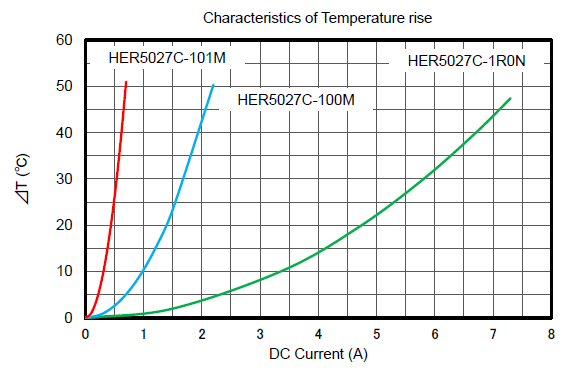

Characteristics of Temperature Rise
