SMD Inductors for Class D DRU6973G
NEW AEC-Q200 2 in 1
Mag
Features
- Realization of high current specifications by metallic magnetic material.
- Space reduction is realized by 2 in 1 construction
- Decreased acoustic noise by there are no air gaps.
- Low inductance variance in temperature environments.
- AEC-Q200 compliant
- Operating temperature：-40℃～+125℃(The self-heating is included)
- Withstand Voltage:75V
Applications
- AudioVisual TV and Monitor, Mini System, AV Amplifier, for Professionals
- Automotive Car Audio, Car Navigation
- Home Electronics Games
- Others Power Supply

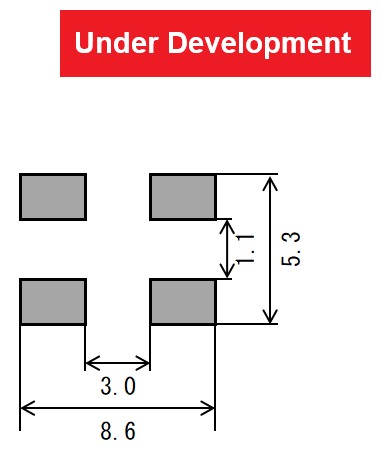

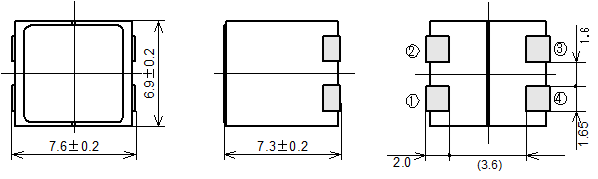

Electrical Characteristics
| Part Number | Inductance (µH) |
DCR (mΩ) | DC Saturation Allowable Current (A) | Temperature Rise Allowable Current (A) | |
|---|---|---|---|---|---|
| Max | Typical | ||||
| DRU6973G-3R3M | 3.3 ± 20% | 19 | 15.6 | 13.2 | 5.7 |
| DRU6973G-100M | 10 ± 20% | 48.2 | 42.4 | 6.8 | 3.5 |
| DRU6973G-220M | 22 ± 20% | 133.5 | 111.4 | 4.4 | 2.2 |
- Inductance Measuring Condition:100kHz,0.25V
- DC saturation allowable current:The current value which inductance decrease 25% from the initial value
- Temperature rise allowable current:The rise in temperature of core surface is 40℃
