High Reliability Inductors    CWR5027C

AEC-Q200 Not Recommended Mag
CWR5027C

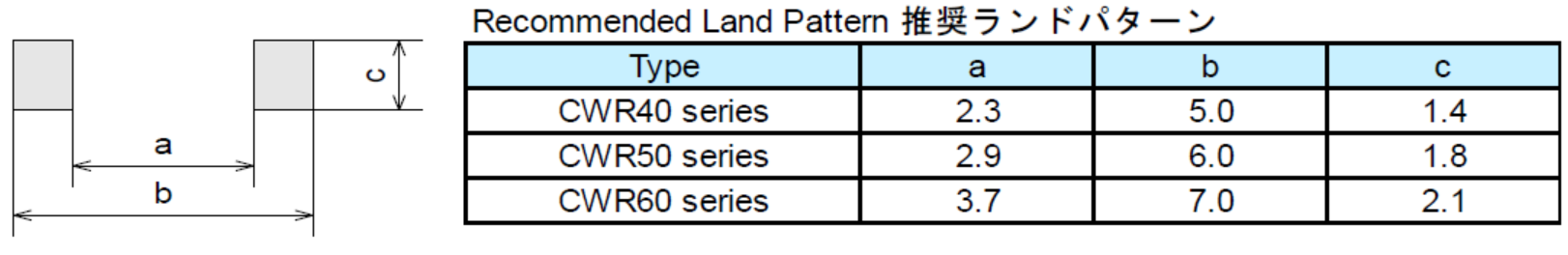

Recommended Land Pattern

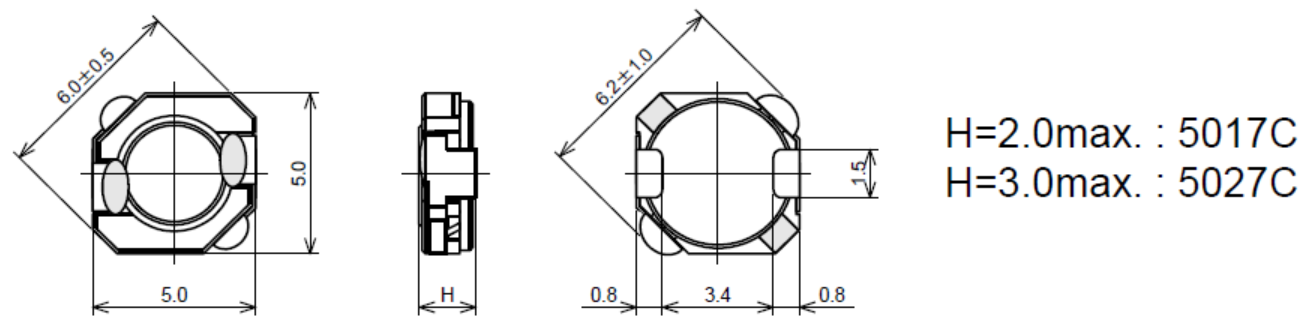

Dimensions
email Contact for this product

Product Info.

General Info.

Features

  • High reliability available for automotive application.
  • SMD magnetic shielded type of power inductor.
  • Suitable for power supply choke coil.
  • AEC-Q200 compliant
  • Operating temperature：-40℃～+150℃(The self-heating is included)

Applications

  • Automotive
    • Car Audio, Car Navigation, ECU, LED Headlights

Electrical Characteristics

Part Number Inductance(µH) DCR (Ω) DC Saturation　Allowable Current (A) Temperature Rise　Allowable Current (A)
Max Typical
CWR5027C-1R0N 1 ± 30% 0.028 0.021 4.1 2.2
CWR5027C-1R5N 1.5 ± 30% 0.033 0.025 3.2 2.1
CWR5027C-1R8N 1.8 ± 30% 0.037 0.029 2.9 1.95
CWR5027C-2R2N 2.2 ± 30% 0.044 0.034 2.7 1.75
CWR5027C-3R3N 3.3 ± 30% 0.049 0.038 2.5 1.7
CWR5027C-3R9N 3.9 ± 30% 0.056 0.043 2.2 1.58
CWR5027C-4R7N 4.7 ± 30% 0.06 0.046 2.1 1.52
CWR5027C-5R6N 5.6 ± 30% 0.073 0.056 1.9 1.37
CWR5027C-6R8N 6.8 ± 30% 0.086 0.066 1.75 1.3
CWR5027C-7R5N 7.5 ± 30% 0.1 0.079 1.6 1.18
CWR5027C-9R1N 9.1 ± 30% 0.11 0.084 1.55 1.08
CWR5027C-100M 10 ± 20% 0.13 0.099 1.4 1.05
CWR5027C-120M 12 ± 20% 0.15 0.115 1.35 0.94
CWR5027C-150M 15 ± 20% 0.19 0.145 1.2 0.86
CWR5027C-180M 18 ± 20% 0.21 0.164 1.15 0.83
CWR5027C-220M 22 ± 20% 0.26 0.203 1 0.73
CWR5027C-270M 27 ± 20% 0.34 0.263 0.93 0.65
CWR5027C-330M 33 ± 20% 0.39 0.298 0.85 0.6
CWR5027C-390M 39 ± 20% 0.47 0.361 0.77 0.54
CWR5027C-470M 47 ± 20% 0.53 0.405 0.71 0.52
CWR5027C-560M 56 ± 20% 0.66 0.512 0.64 0.45
CWR5027C-680M 68 ± 20% 0.9 0.697 0.59 0.39
CWR5027C-820M 82 ± 20% 1 0.767 0.53 0.37
CWR5027C-101M 100 ± 20% 1.35 1.06 0.48 0.32
CWR5027C-121M 120 ± 20% 1.5 1.15 0.44 0.29
CWR5027C-151M 150 ± 20% 2.1 1.63 0.39 0.25
CWR5027C-181M 180 ± 20% 2.3 1.77 0.36 0.24
CWR5027C-221M 220 ± 20% 2.6 2 0.32 0.23

Current characteristic graph

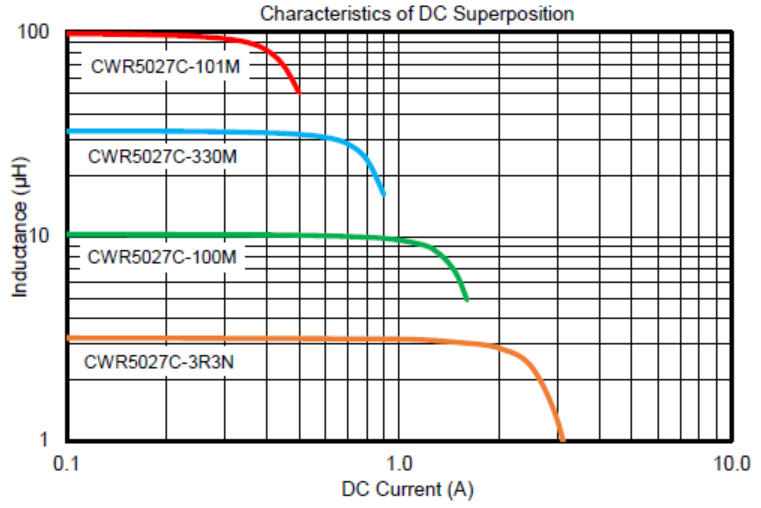

Characteristics of DC Superposition

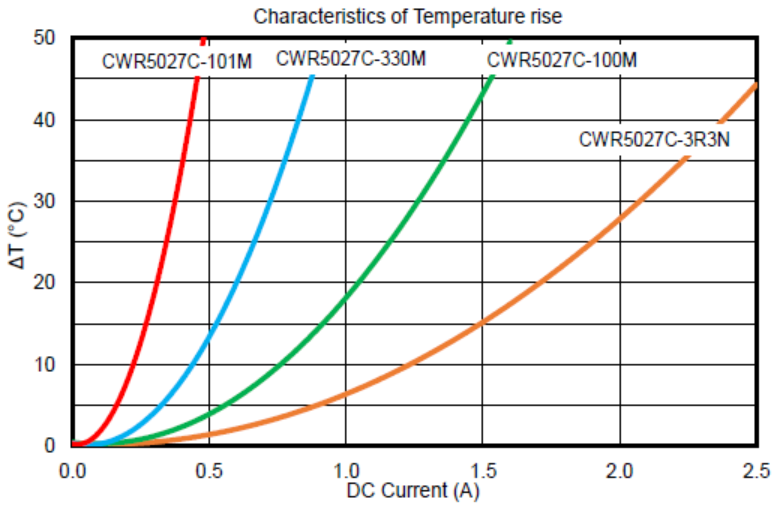

Characteristics of Temperature Rise
