High Reliability Inductors CDG9672C
NEW AEC-Q200
Mag
Product Info.
General Info.
Features
- SMD Inductors for High Current Applications
- Low DCR, high saturation current
- AEC-Q200 compliant spec available upon request
- Operating temperature：-40℃～+150℃(The self-heating is included)
Applications
- Automotive ECU
- Computer & Peripheral Device Computer
- Others Power Supply

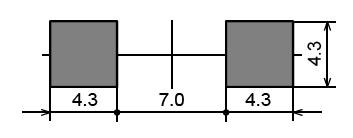

Electrical Characteristics
| Part Number | Inductance(nH) | DCR(mΩ) max. | DC Saturation Allowable Current (A) | Temperature Rise Allowable Current (A) |
|---|---|---|---|---|
| CDG9672C-R20M | 200 ± 20% | 0.3 | 92.7 | 48.9 |
| CDG9672C-R39M | 390 ± 20% | 0.3 | 45.7 | 48.9 |
| CDG9672C-R59M | 590 ± 20% | 0.3 | 29.1 | 48.9 |
- Inductance Measuring Condition:100kHz,1V
- DC saturation allowable current:The current value which inductance decrease 20% from the initial value
- Temperatue rise allowable current:The rise in temperature of core surface is 40℃
