Bar Antenna    ABA7215

Discontinued
ABA7215

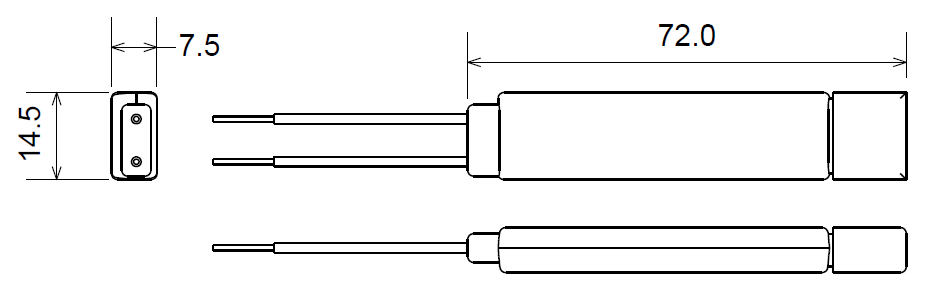

Dimensions
email Contact for this product

Product Info.

General Info.

Features

  • Best suited for LF Band Magnetic Field TR Antenna
  • Waterproof
  • Customized services based on various systems available for :HARNESS LENGTH / CONNECTOR SHAPE / TUNING FREQUENCY / IMPEDANCE and so on
  • Operating Temperature :-40℃～+85℃(Including Self-heating)

Applications

  • Automotive
    • Antenna

Electrical Characteristics

Resonant Frequency ±1.0
(kHz)		 Impedance
(Ω) Typ.		 Inductance
(µH) Typ.		 Capacitance
(pF) Typ.
125.0 2.5 491 3300
134.2 2.4 426 3300

Current characteristic graph

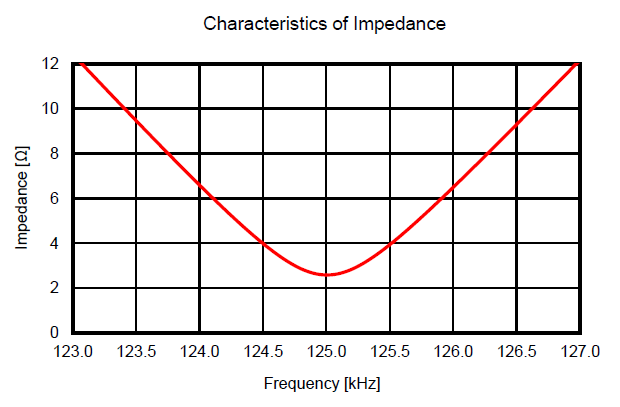

Impedance vs. Frequency

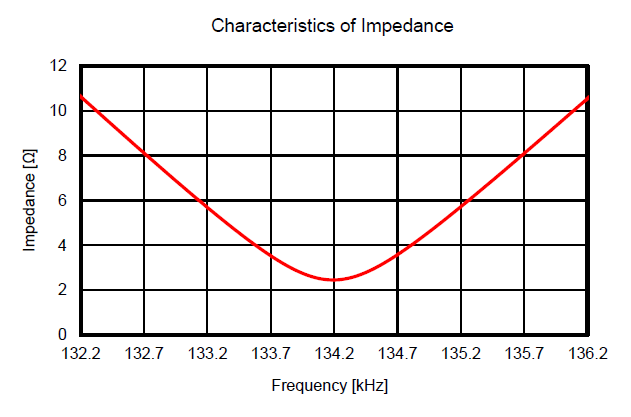

Impedance vs. Frequency
