Leaded Inductors for Class D    7G23B

email Contact for this product
Buy Now chip1stop

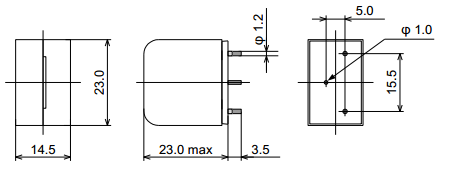

Features

  • Realized high power and high quality sound using low loss material. (Available OFC wire)
  • High current, low resistance
  • Low radiation noise by magnetically shielded structure.

Applications

  • AudioVisual
  • Mini System, AV Amplifier, for Professionals

  • Others
  • Power Supply

Electrical Characteristics

Part Number Inductance(µH) DCR (mΩ) DC Saturation Allowable Current (A) Temperature Rise Allowable Current (A)
Max Typical
7G23B-100M 10 ± 20% 8.3 6.7 31.5 9.1
7G23B-120M 12 ± 20% 8.3 6.7 26 9.1
7G23B-150M 15 ± 20% 9.1 7.3 23.5 8.7
7G23B-180M 18 ± 20% 8.3 6.7 17.5 9.1
7G23B-220M 22 ± 20% 9.1 7.3 16.5 8.7
  • Inductance Measuring Condition:100kHz,1V
  • DC saturation allowable current:The current value which inductance decrease within 25% from the initial value
  • Temperatue rise allowable current:The rise in temperature of core surface is within 40℃

Graph of Characteristics

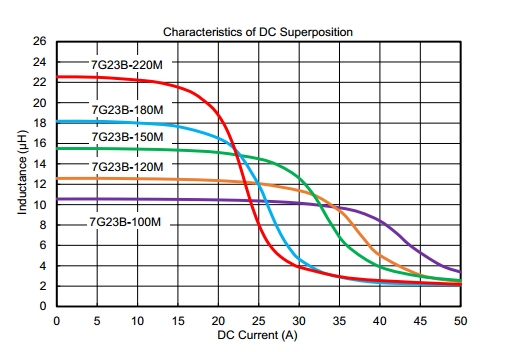

Characteristics of DC Superposition

Other Items
