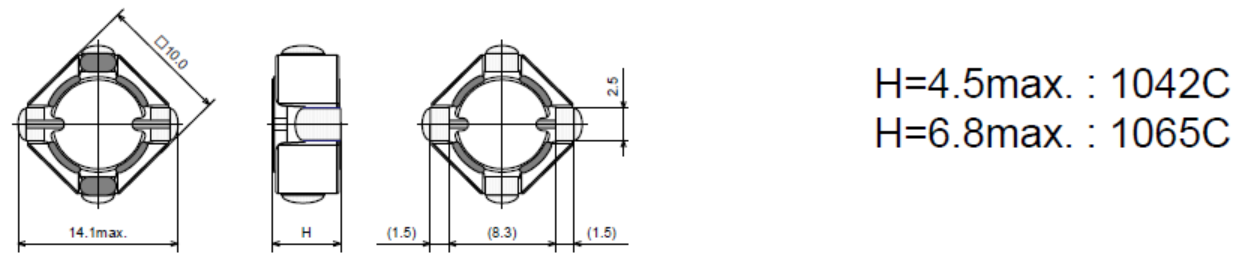

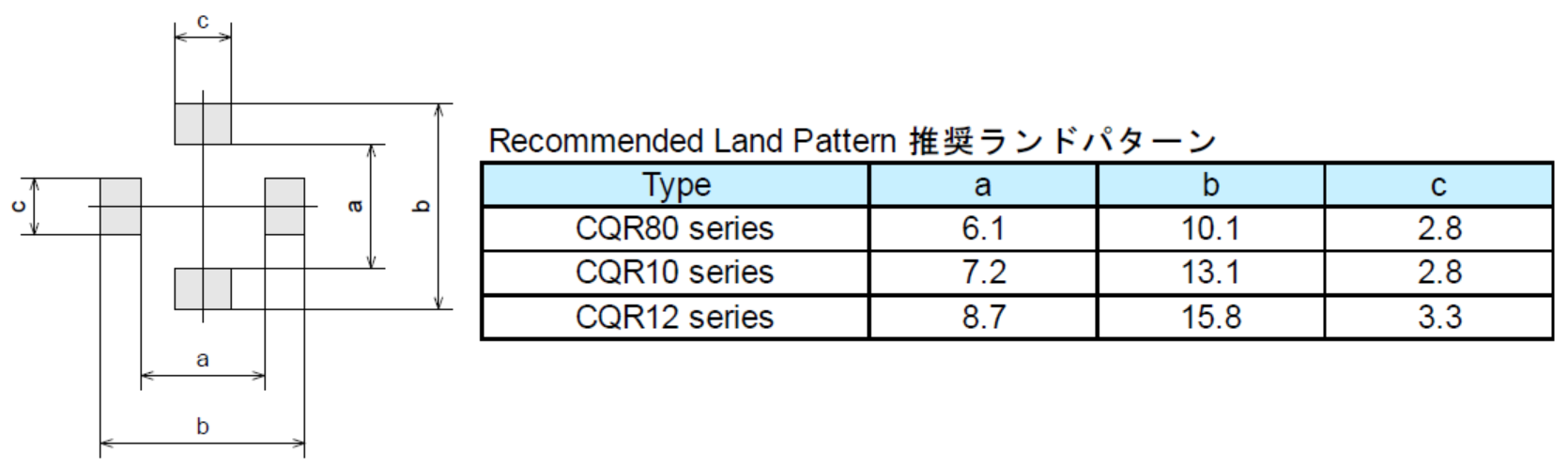

高信赖性贴片功率电感器 CQR1065C
特长
- 车载上高信赖性使用
- 闭磁路形式的贴片功率电感
- 最适合作为电源的扼流线圈用
- 符合AEC-Q200
- 工作温度范围：-40℃～+150℃（包含自身发热）
用途
- 车载 汽车音响, 汽车导航, ECU, LED前灯
电气特性
| 型号 | 电感值 (µH) | 直流电阻 (Ω)±30% | 额定直流电流 (A) | 额定温度上升电流 (A) | ||
|---|---|---|---|---|---|---|
| Typical | Spec | Typical | Spec | |||
| CQR1065C-R91N | 0.9 ± 30% | 0.006 | 23 | 17 | 9.3 | 6.45 |
| CQR1065C-1R5N | 1.5 ± 30% | 0.007 | 19 | 12.6 | 8.2 | 5.75 |
| CQR1065C-2R2N | 2.2 ± 30% | 0.009 | 16 | 10.5 | 7.5 | 5.35 |
| CQR1065C-3R0N | 3 ± 30% | 0.01 | 14 | 9 | 6.95 | 4.8 |
| CQR1065C-3R9N | 3.9 ± 30% | 0.012 | 12 | 8 | 6.5 | 4.5 |
| CQR1065C-4R7N | 4.7 ± 30% | 0.013 | 10.5 | 7 | 6.15 | 4.3 |
| CQR1065C-6R2N | 6.2 ± 30% | 0.015 | 9.5 | 6.1 | 5.75 | 4.2 |
| CQR1065C-7R5N | 7.5 ± 30% | 0.016 | 9 | 5.7 | 5.45 | 3.95 |
| CQR1065C-100M | 10 ± 20% | 0.022 | 7.2 | 5 | 4.65 | 3.35 |
| CQR1065C-120M | 12 ± 20% | 0.024 | 6.8 | 4.5 | 4.45 | 3.2 |
| CQR1065C-150M | 15 ± 20% | 0.034 | 6 | 4.1 | 3.7 | 2.75 |
| CQR1065C-180M | 18 ± 20% | 0.039 | 5.4 | 3.75 | 3.5 | 2.6 |
| CQR1065C-220M | 22 ± 20% | 0.049 | 5 | 3.3 | 3.1 | 2.4 |
| CQR1065C-270M | 27 ± 20% | 0.063 | 4.4 | 3 | 2.75 | 2.15 |
| CQR1065C-330M | 33 ± 20% | 0.07 | 4.1 | 2.65 | 2.6 | 1.95 |
| CQR1065C-390M | 39 ± 20% | 0.08 | 3.8 | 2.45 | 2.5 | 1.7 |
| CQR1065C-470M | 47 ± 20% | 0.1 | 3.6 | 2.3 | 2.2 | 1.6 |
| CQR1065C-560M | 56 ± 20% | 0.11 | 3.2 | 2.05 | 2.1 | 1.5 |
| CQR1065C-680M | 68 ± 20% | 0.12 | 2.9 | 1.85 | 1.98 | 1.35 |
| CQR1065C-820M | 82 ± 20% | 0.15 | 2.6 | 1.7 | 1.7 | 1.25 |
| CQR1065C-101M | 100 ± 20% | 0.19 | 2.3 | 1.5 | 1.55 | 1.15 |
| CQR1065C-121M | 120 ± 20% | 0.22 | 2.2 | 1.35 | 1.45 | 1.05 |
| CQR1065C-151M | 150 ± 20% | 0.28 | 1.9 | 1.25 | 1.3 | 0.93 |
| CQR1065C-181M | 180 ± 20% | 0.32 | 1.7 | 1.1 | 1.2 | 0.83 |
| CQR1065C-221M | 220 ± 20% | 0.38 | 1.6 | 1 | 1.1 | 0.77 |
| CQR1065C-271M | 270 ± 20% | 0.46 | 1.4 | 0.95 | 1 | 0.69 |
| CQR1065C-331M | 330 ± 20% | 0.59 | 1.3 | 0.83 | 0.88 | 0.62 |
| CQR1065C-391M | 390 ± 20% | 0.68 | 1.2 | 0.77 | 0.82 | 0.58 |
| CQR1065C-471M | 470 ± 20% | 0.84 | 1.1 | 0.7 | 0.74 | 0.48 |
| CQR1065C-561M | 560 ± 20% | 1.04 | 0.96 | 0.67 | 0.67 | 0.46 |
| CQR1065C-681M | 680 ± 20% | 1.3 | 0.9 | 0.61 | 0.6 | 0.42 |
| CQR1065C-821M | 820 ± 20% | 1.55 | 0.82 | 0.56 | 0.54 | 0.39 |
| CQR1065C-102M | 1000 ± 20% | 1.9 | 0.74 | 0.5 | 0.49 | 0.36 |
电流特性图

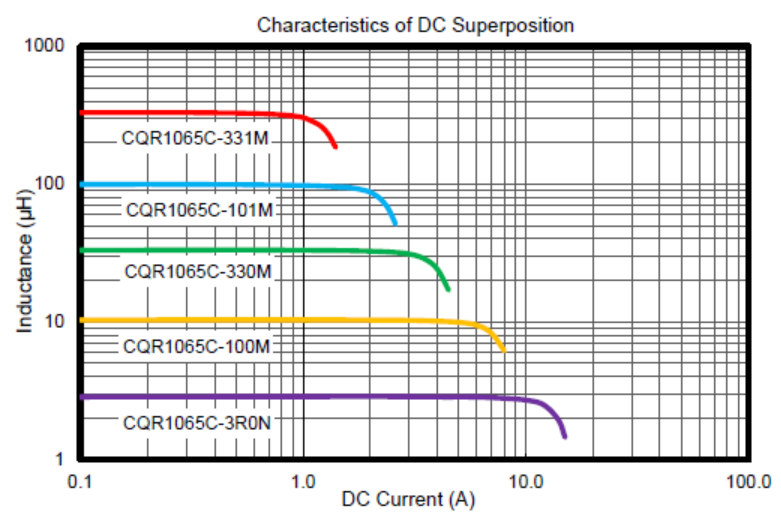

直流饱和特性

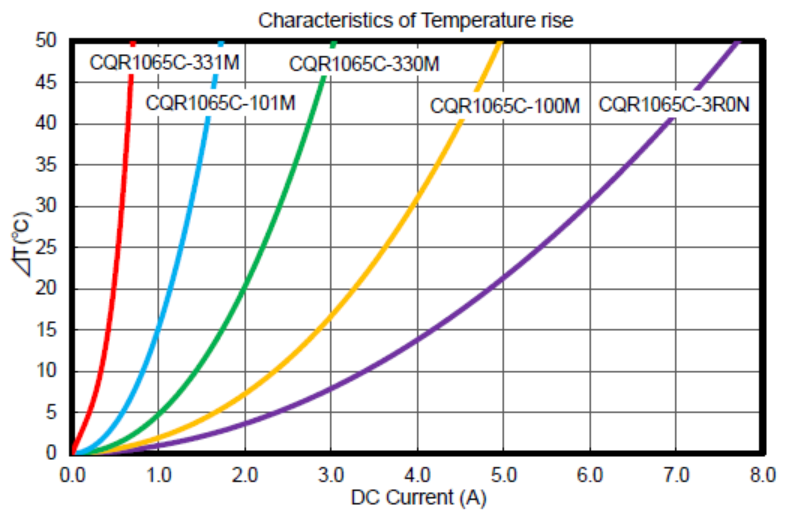

温度上升特性
